Products

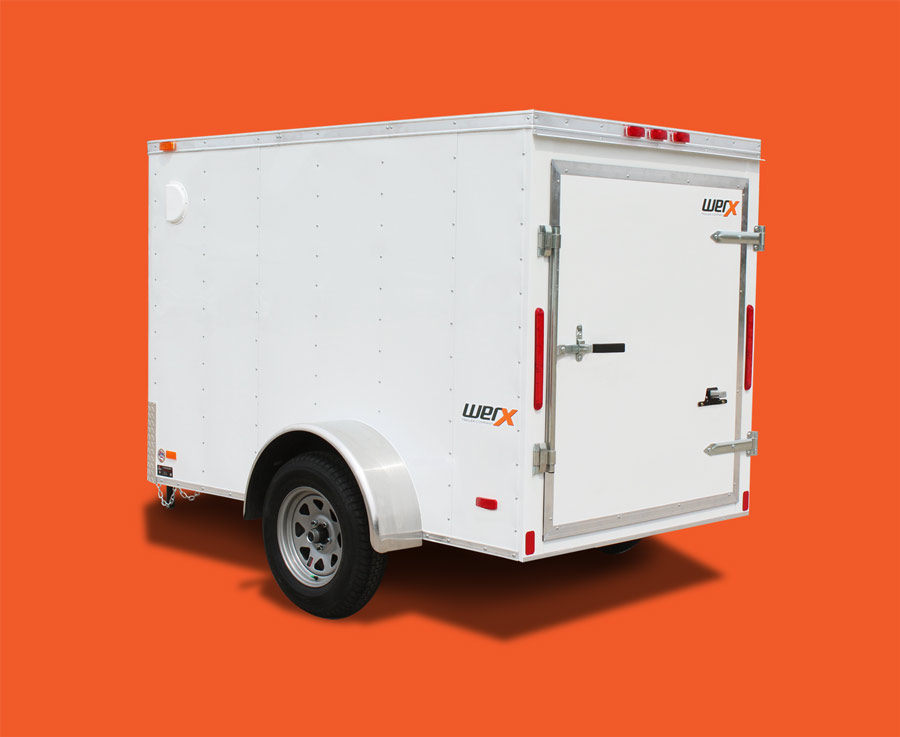

WX58SA

Spring Axles	2990#
Tube Frame	3" Tube
Hitch Ball Size	2"
Curb Weight	773#
Hitch Weight	115#
GVWR	2990#
Payload Capacity	2217#
Overall Length	12' 2"
Overall Width	6' 6"
Overall Height	6' 8"
Exterior Box Width	5'
Interior Length	8' 4"
Interior Width	4' 8"
Interior Height	5' 1"
Platform Height	18"
Rear Doors	Single
Rear Door Width	4' 2"
Rear Door Height	4' 6"
Side Door Width	N/A
Side Door Height	N/A
Cross Members O.C.	24"
Wall Posts O.C.	16"
Roof Members O.C.	24"

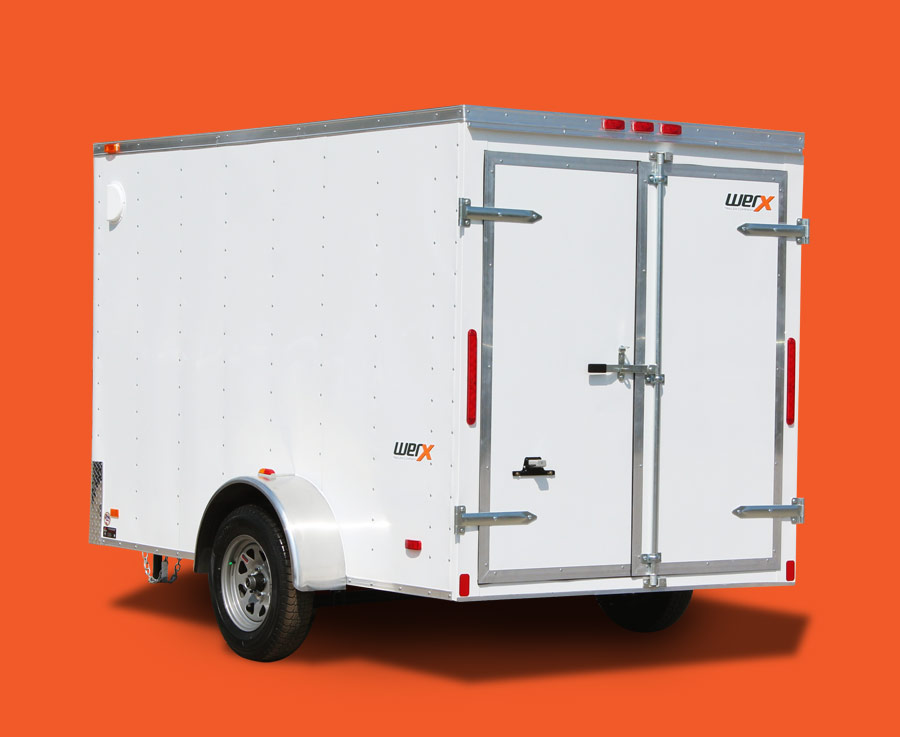

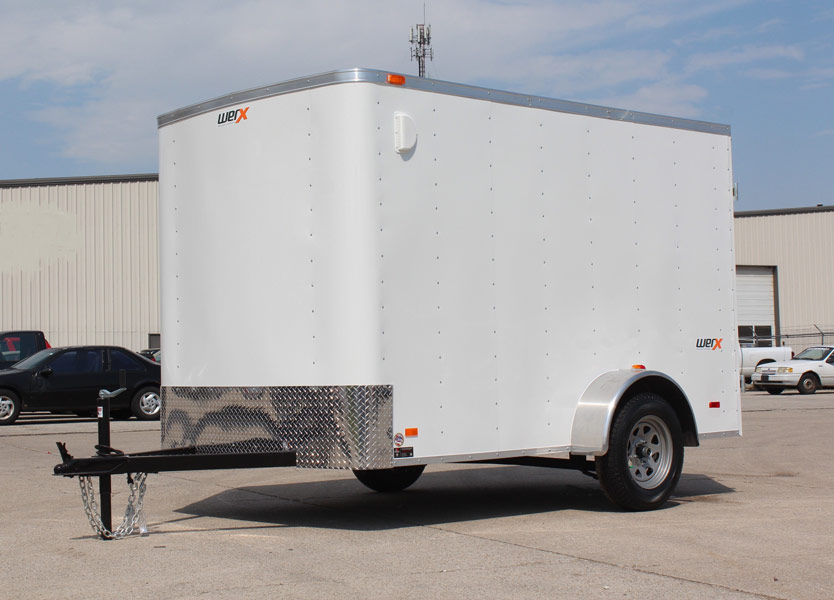

WX610SA

Spring Axles	2990#
Tube Frame	3" Tube
Hitch Ball Size	2"
Curb Weight	985#
Hitch Weight	160#
GVWR	2990#
Payload Capacity	2005#
Overall Length	14' 2"
Overall Width	7' 6"
Overall Height	7' 8"
Exterior Box Width	6'
Interior Length	10' 4"
Interior Width	5' 8"
Interior Height	6' 1"
Platform Height	18"
Rear Doors	Double
Rear Door Width	5' 2"
Rear Door Height	5' 6"
Side Door Width	N/A
Side Door Height	N/A
Cross Members O.C.	24"
Wall Posts O.C.	16"
Roof Members O.C.	24"

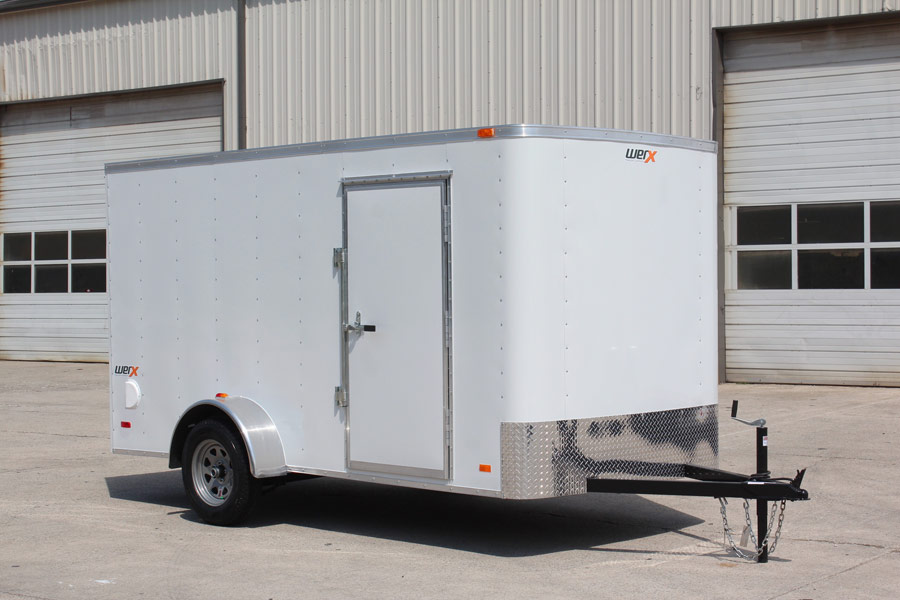

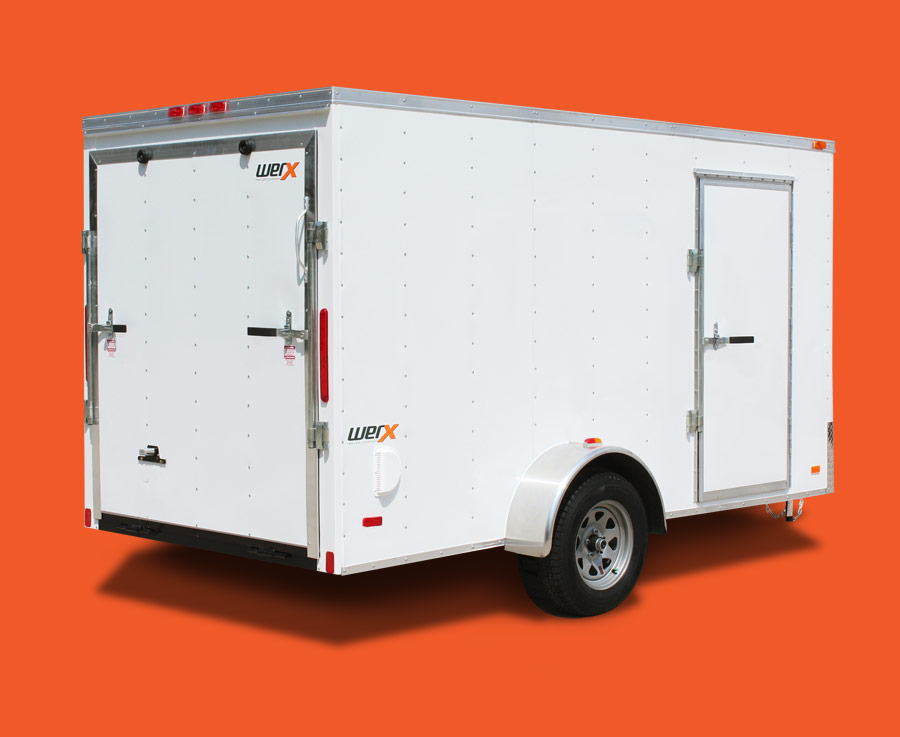

WX612SA

Spring Axles	2990#
Tube Frame	3" Tube
Hitch Ball Size	2"
Curb Weight	1122#
Hitch Weight	175#
GVWR	2990#
Payload Capacity	1868#
Overall Length	16' 2"
Overall Width	7' 6"
Overall Height	7' 8"
Exterior Box Width	6'
Interior Length	12' 4"
Interior Width	5' 8"
Interior Height	6' 1"
Platform Height	18"
Rear Doors	Ramp
Rear Door Width	5' 2"
Rear Door Height	5' 6"
Side Door Width	32"
Side Door Height	5' 4"
Cross Members O.C.	24"
Wall Posts O.C.	16"
Roof Members O.C.	24"

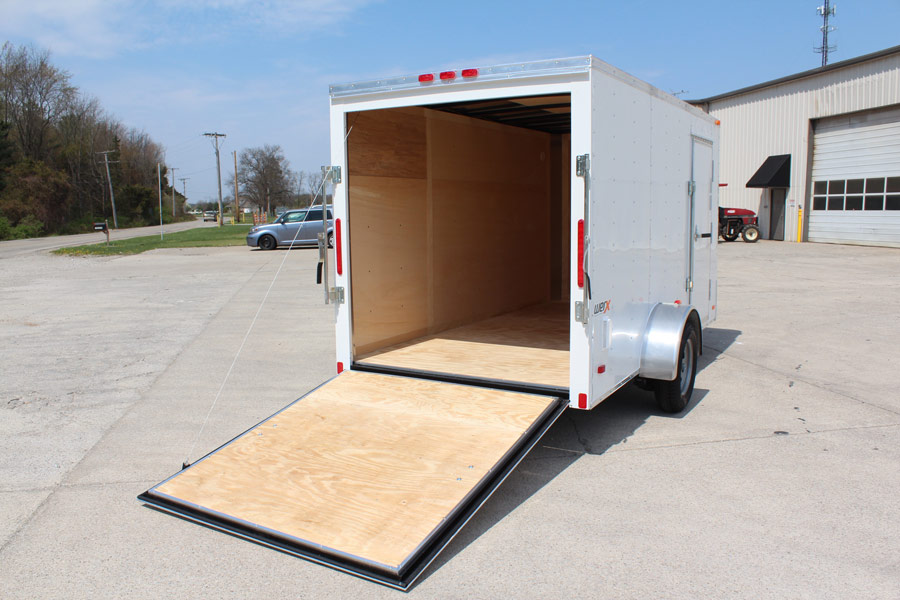

werX-612-rear-ramp-with-spring-assist-open

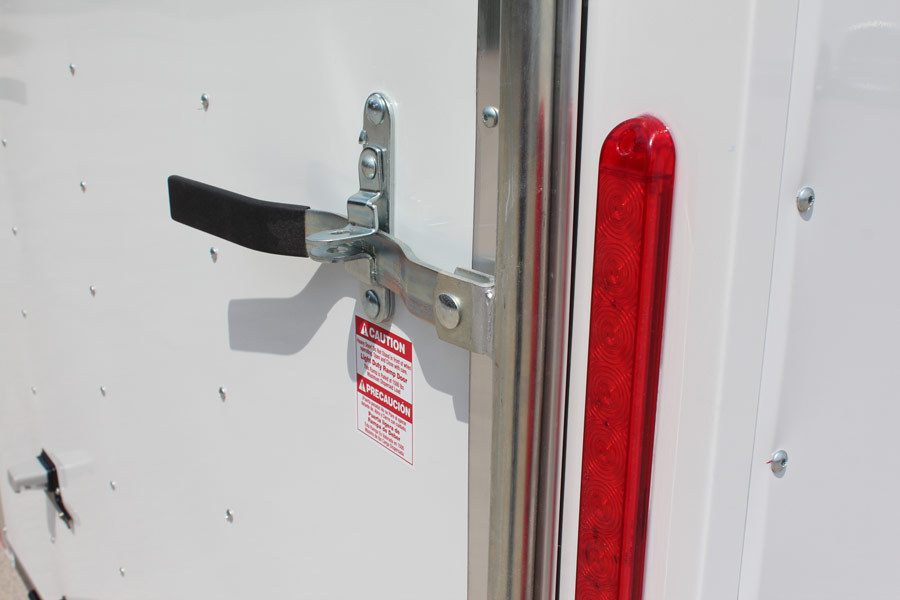

werX-LED-tail-lights-and-security-bar-lock

Standard Features

LED Rear Tail Lights

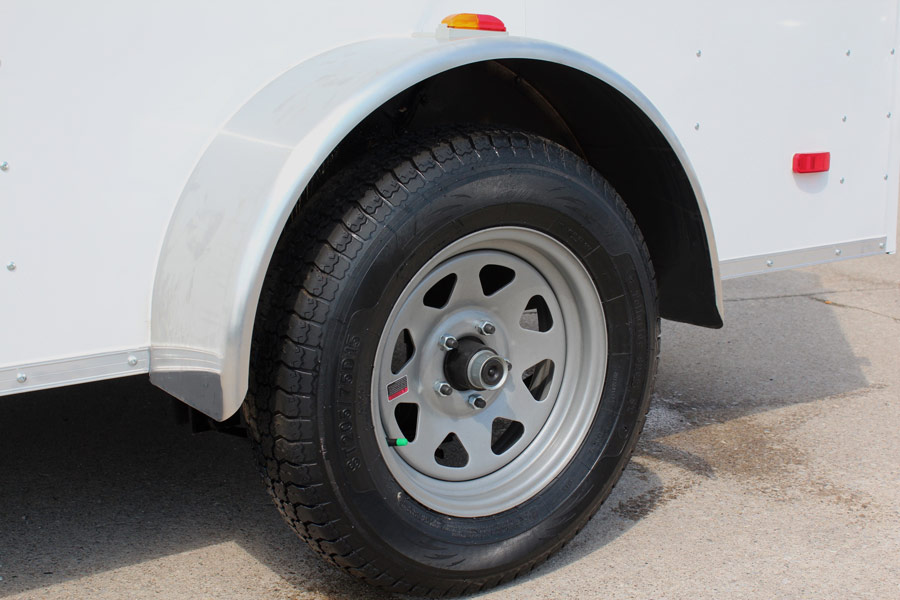

Aluminum Fenders
Silver Modular Wheels
Color Wrapped Rear Steel Header & Corner Posts
15" Radial Tires
4" Drop Spring Axle
16" O.C. Wall Posts
16" ATP Stoneguard
Truck Body Style Roof Design
Z-Tech Undercoated Frame
Tube Main Frame
3/4" DryMax Floor
Lauan Interior Walls
Dome Light
12V Wall Switch (6' Wide)

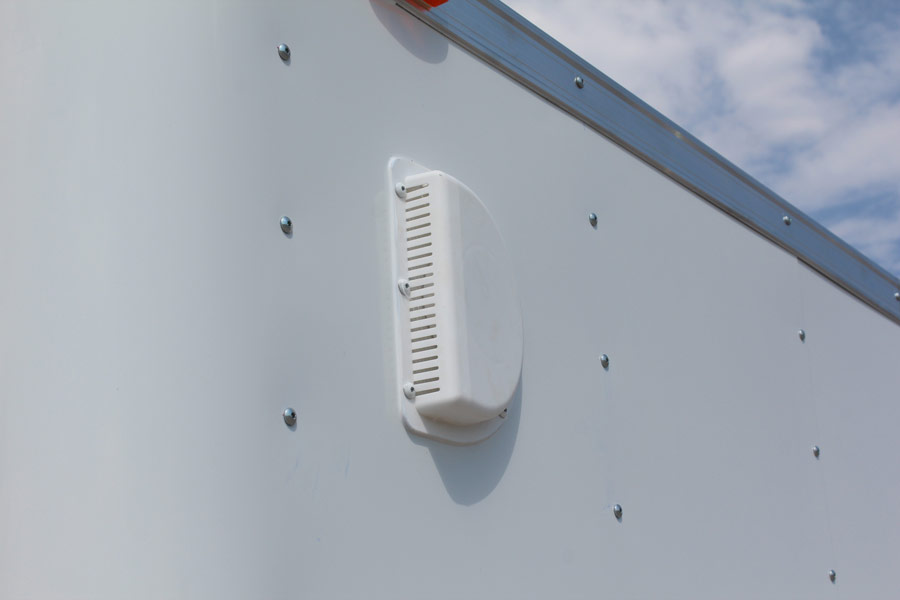

1 PR ABS Flow Thru Sidewall Vents
.030 White Aluminum Exterior
Painted Tongue Jack
Side Door with Barlock (6x12)
One Year Warranty

Member of the National Association of Trailer Manufacturers
